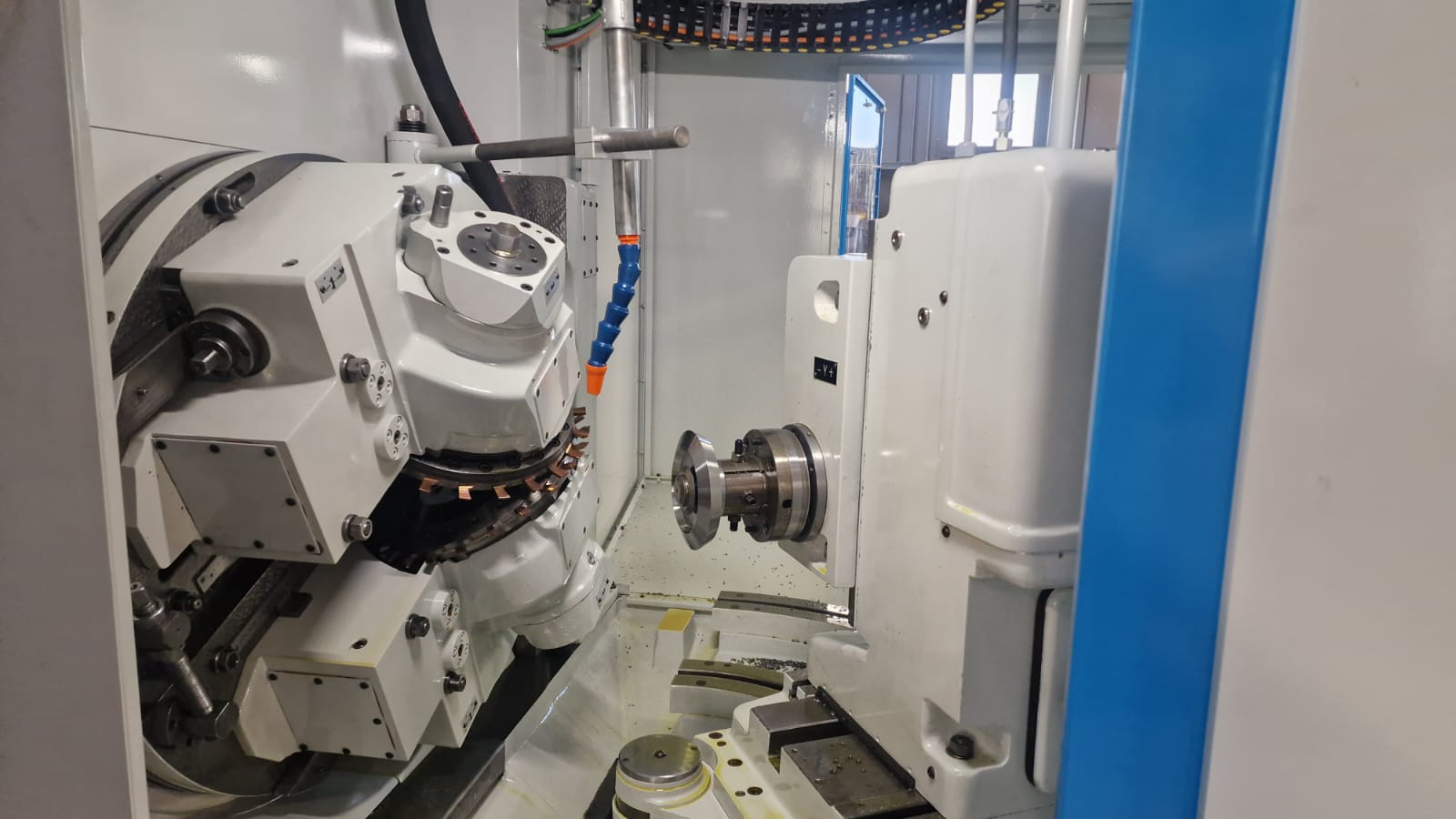

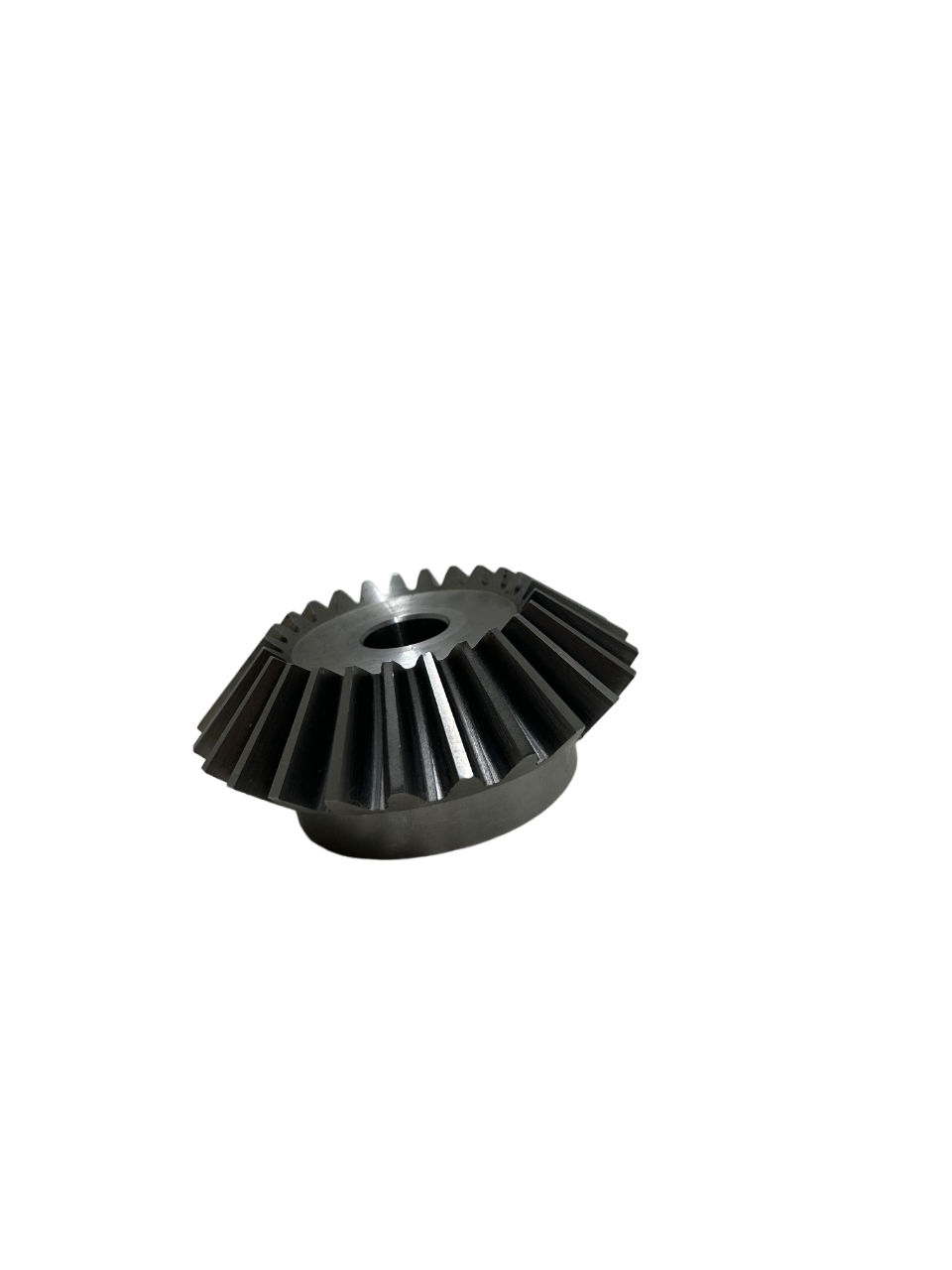

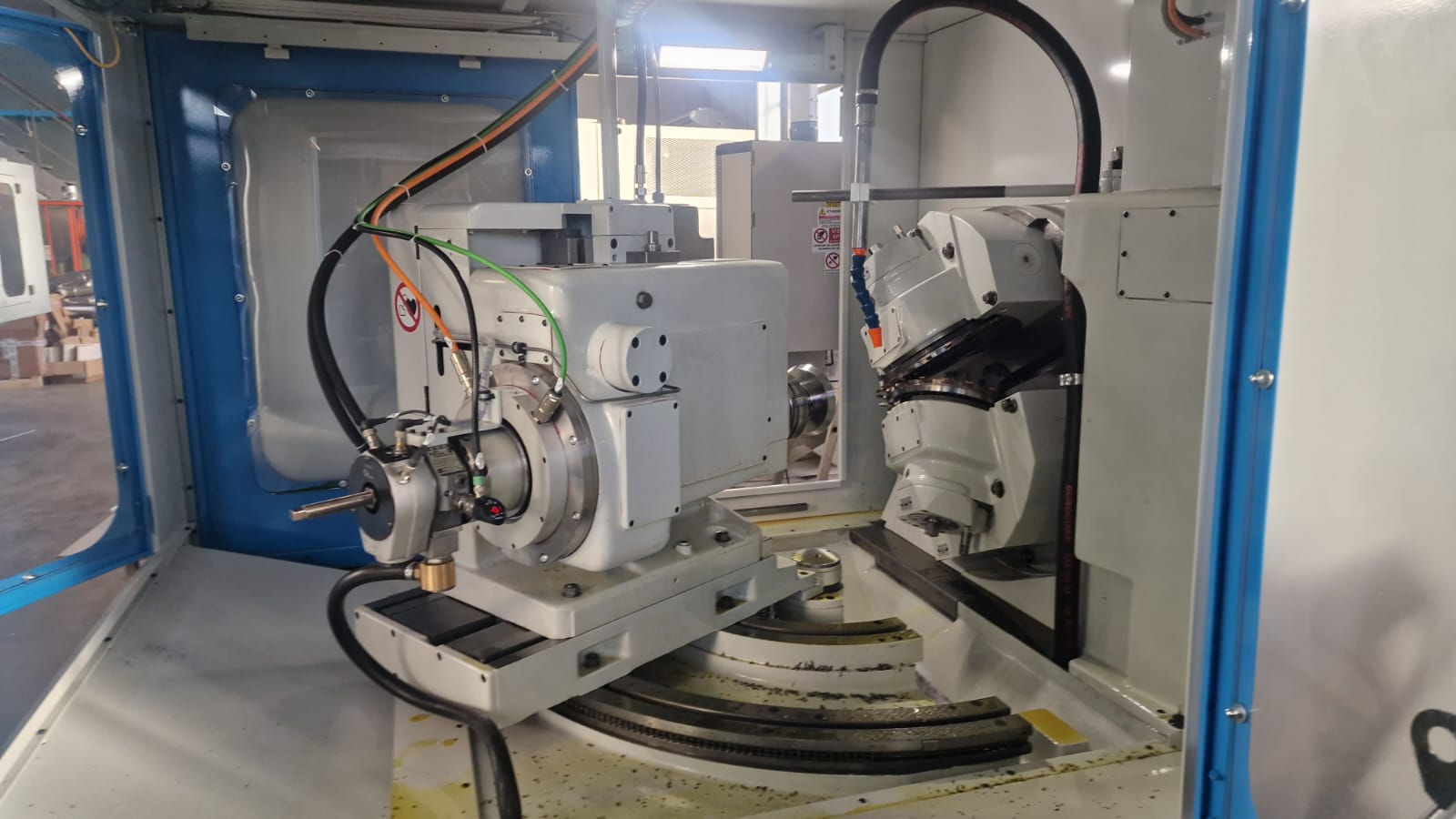

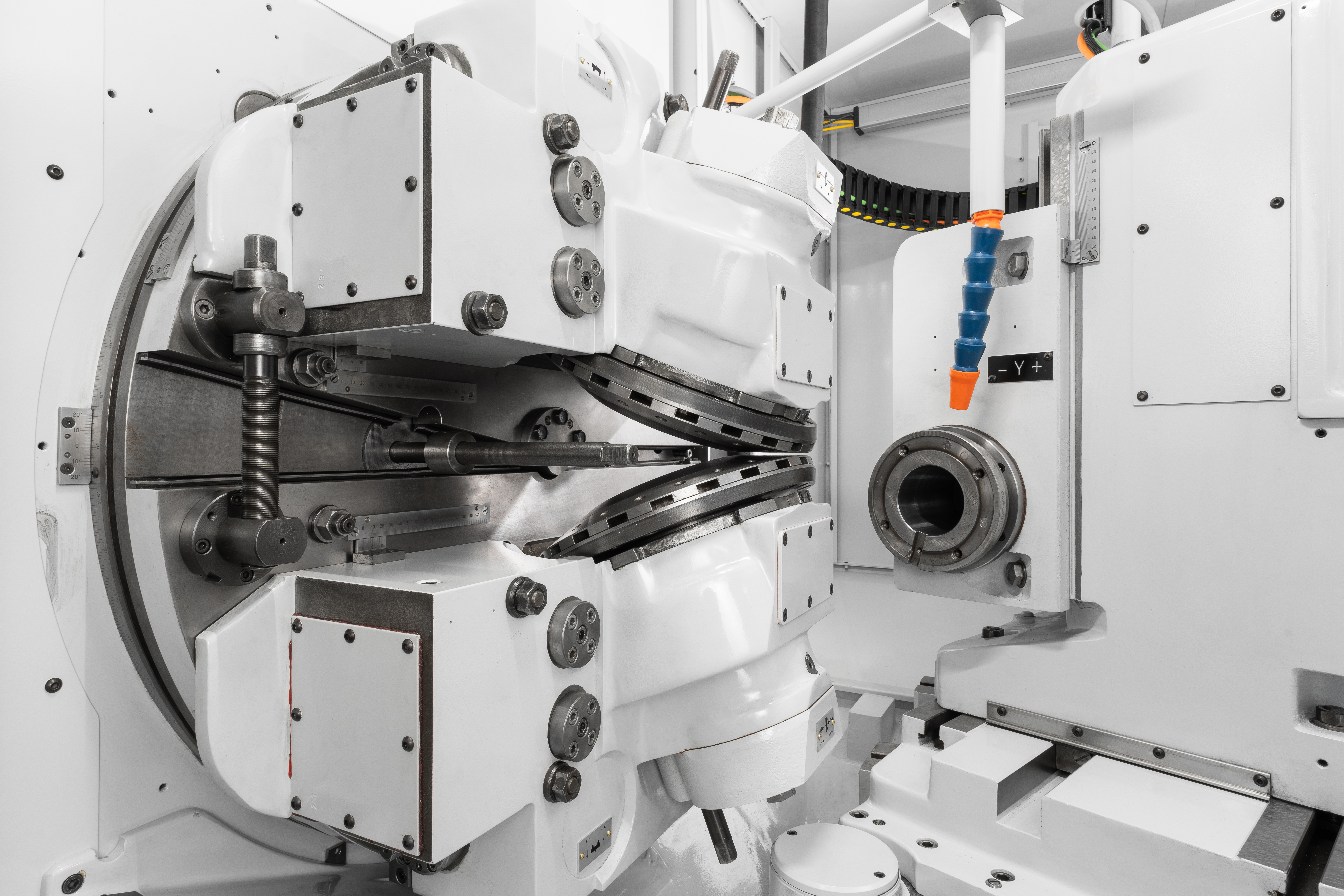

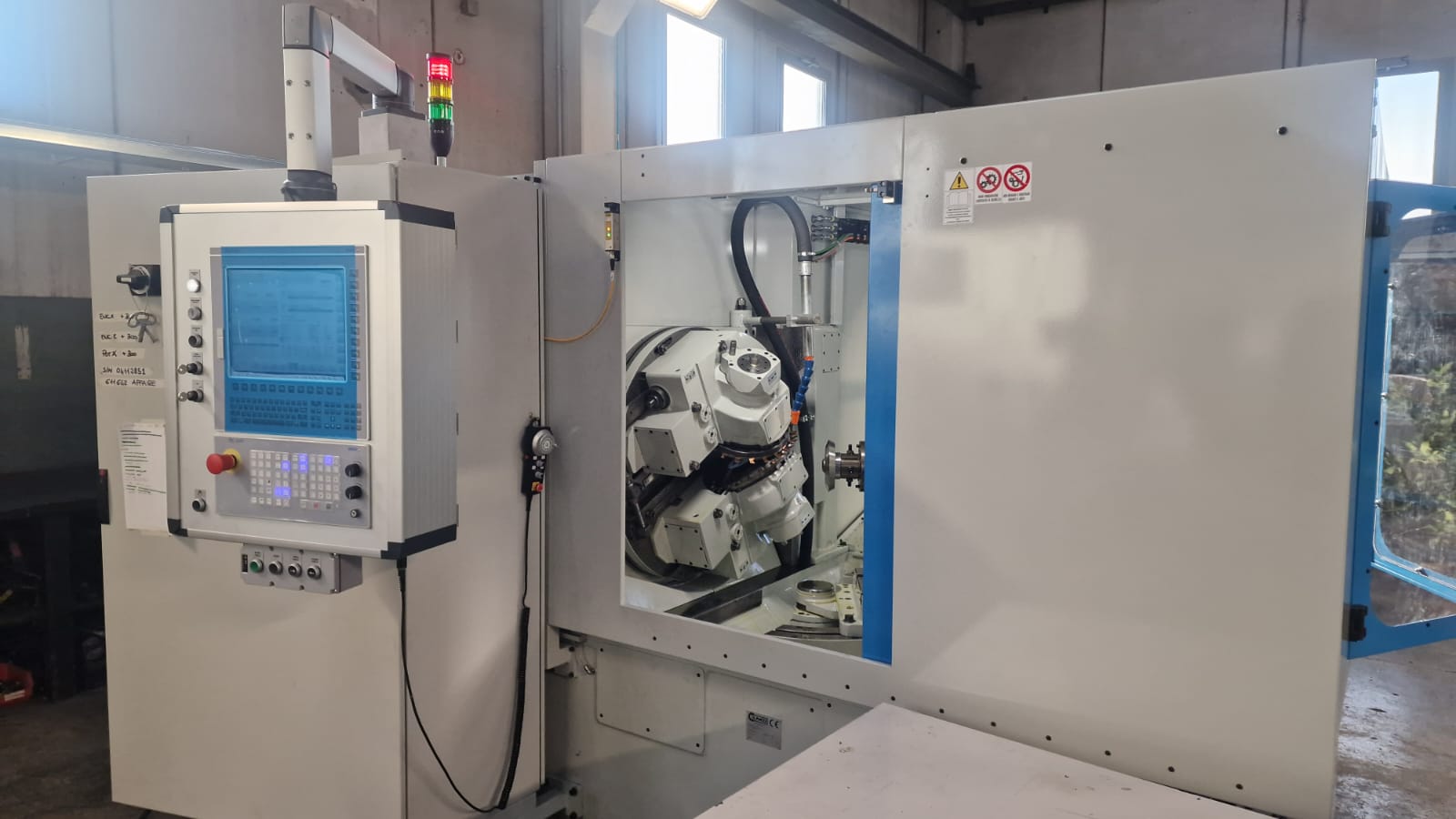

Straight bevel gear generator LANZI L250

Location

Crespellano, Italy

orCall 0039 051 6720222

Specifications

ManufacturerLANZI
ModelL250
ConditionNew
Stock Number**
X-axis travel (cradle)from 720° to -720°
Z axis travel (slide)280 mm
X axis rapid speed6480 degrees/min.
Z axis rapid speed10000 mm/min.
Y axis rapid speed136800 degrees/min.
Maximum diameter of the piece200 mm
module max6.35
Max speed of the cutter holder spindle180 degrees/min.
Max cutter diameter9'' inch

Description

Equipment:


  • Design of new hydraulic and lubrication system,

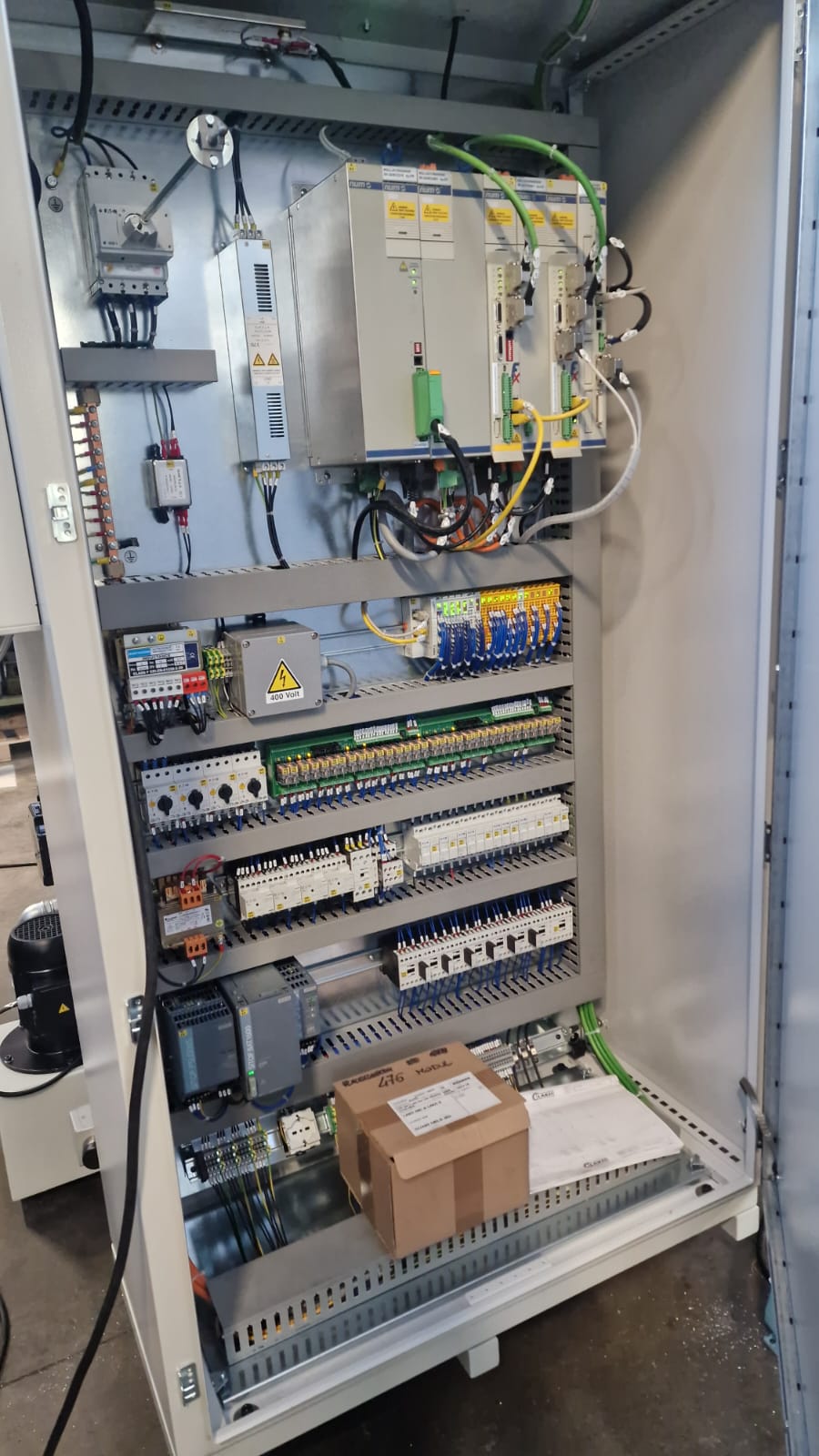

  • Design of new wiring diagram in accordance with the directives currently in force;
  • Design and construction of new mechanical parts for the interconnection of the new axis drives;
  • Checking of mechanical clearances and, if necessary, restoration of kinematics;
  • Complete disassembly of the machine in all its mechanical parts;
  • Removal of existing hydraulic system and disposal;
  • Removal of existing electrical system and disposal;
  • Custom painting according to customer specifications in RAL colour (single-colour);
  • Plane contact control and manual scraping;
  • Recirculating ball screw on Z-axis (base slide);
  • New hydraulic control unit;
  • NUM servomotors on Z and X axes;
  • Replacement of cutter motor with NUM asynchronous motor;
  • Workpiece head with Torque motor;

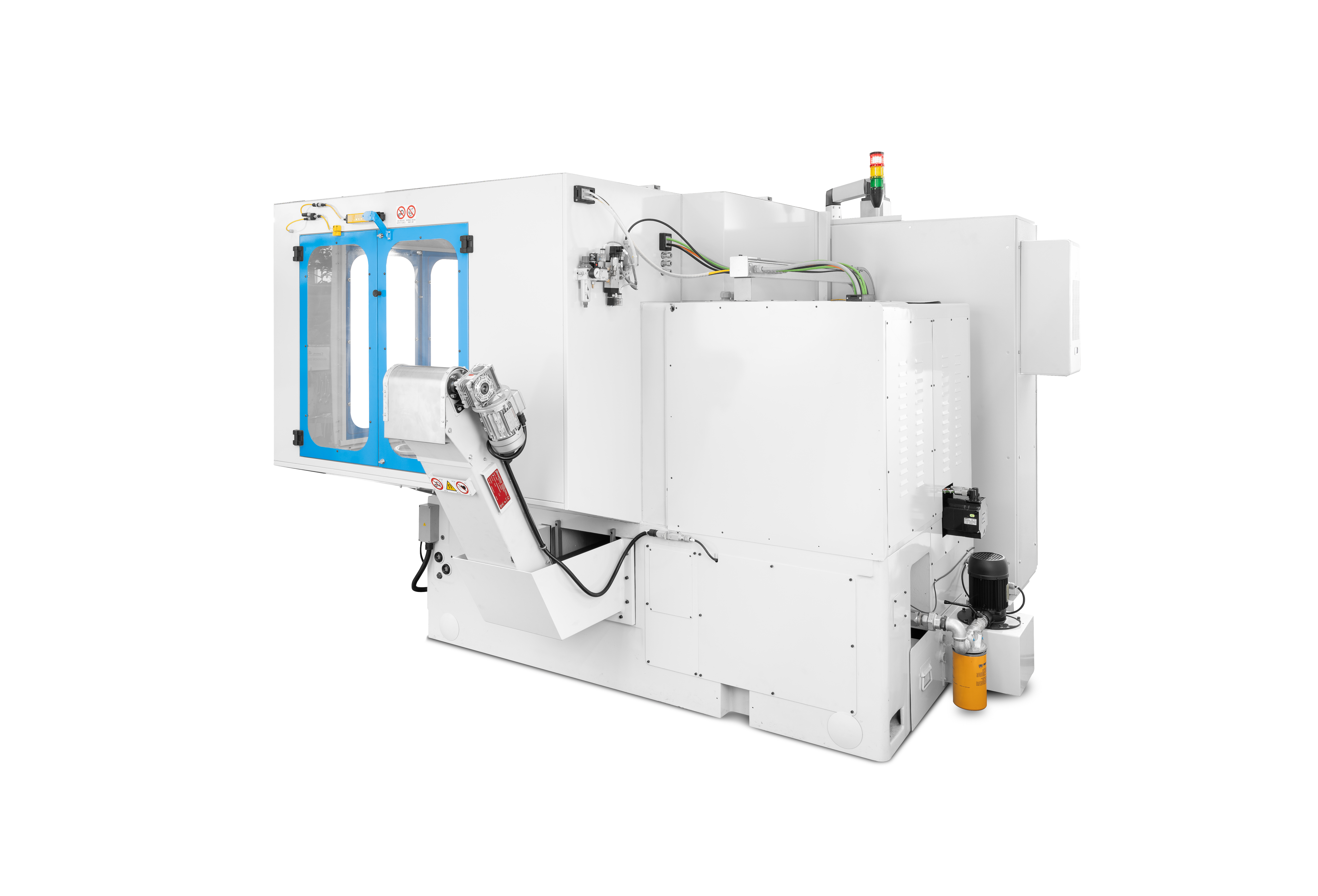

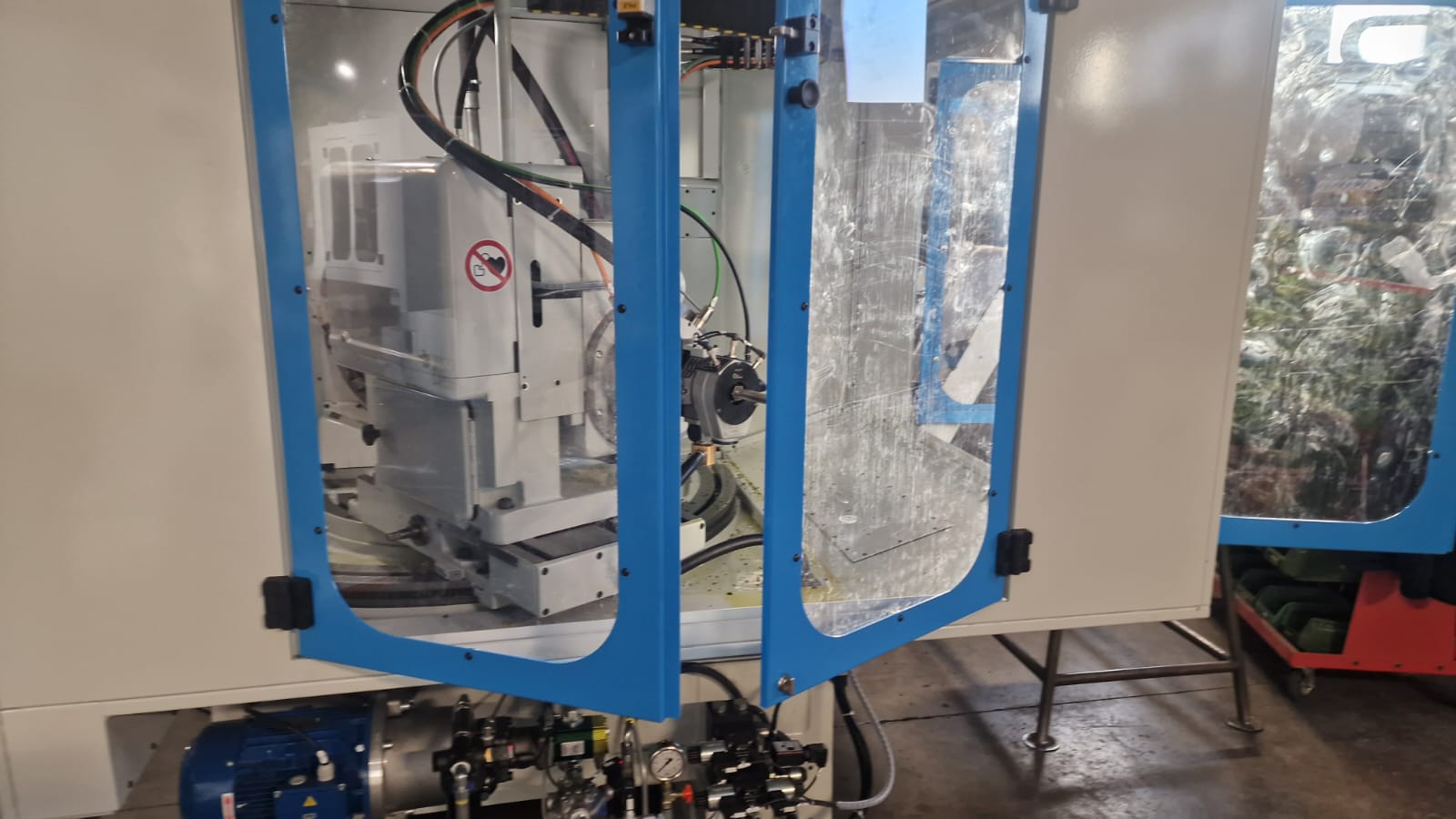

  • Fairing with automatic pneumatic door;

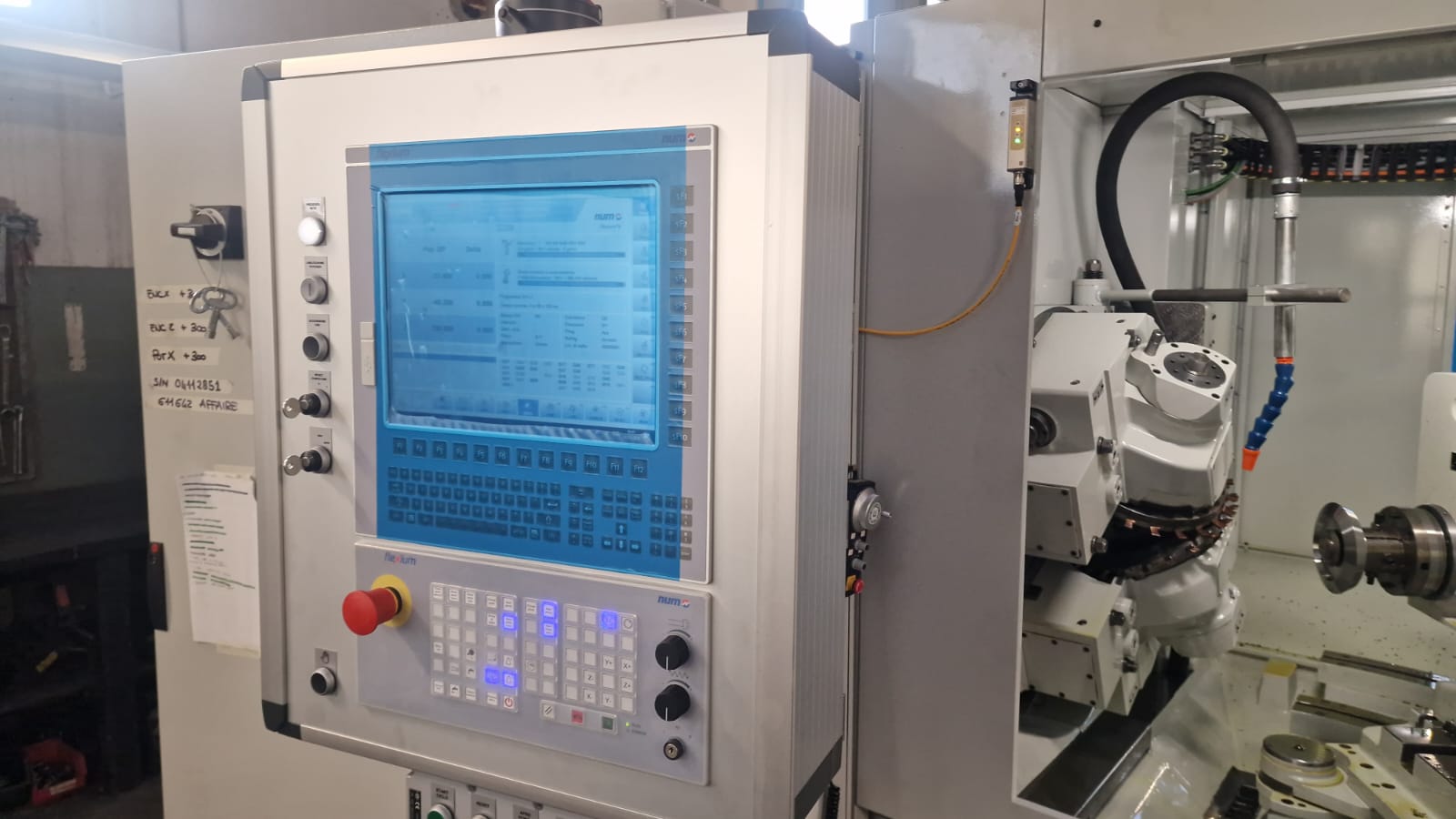

  • NUM-FLEXIUM+ numerical control;
  • Robot interface;
  • CNC-programmable workpiece clamping pressure;
  • Magnetic chip conveyor;
  • CE certification with instruction manual;
  • Ready for 'Industry 4.0' with OPC-UA protocol; Machine data will be made available to your computer system and processed by you.
